CMC Z

The CMC Model Z has been designed to maximize material yield through our SmartClamps™ board which enables edge-to-edge cutting and the opportunity to achieve zero waste.

It also supports the decorative design capabilities of our debossing, pen, vinyl, and box making accessories. Plus, our innovative SwitchBlade™ quick-change cartridge system adds the convenience of easily switching functions in a snap!

The Z provides endless creative possibilities and is powered by user friendly FrameShop™ software, the industry-leading solution for custom mat design, nesting, tiling and optimized outside cuts.

Z Purchase Includes:

• CMC Model Z (SmartClamps™ Board + SwitchBlade™ Cartridge System)

• Choice of Stand: Floor or Wall Mount (Fixed or Retractable)

• Computer / Windows® OS

• FrameShop® Design & Cut Software License

• 45º Standard Bevel Cartridge

• 45º+ Deep Bevel Cartridge

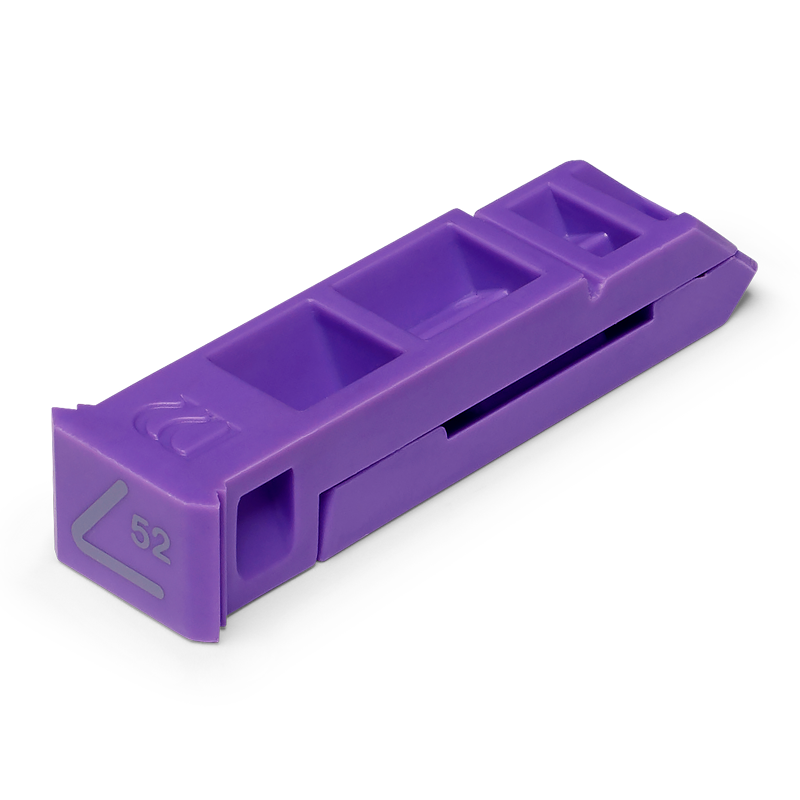

• 52º Intricate Bevel Cartridge

• 90º Straight Cartridge

• Pen Kit

• Debossing Kit (3 Tip Sizes)

• 1-Year Computer Warranty (Provided by PC Manufacturer)

• 1-Year CMC Warranty / Essential Premium Service Plan
  (Complete Hardware Coverage + Technical Support + Wizard University)




Z Rental Programs Include:

• Open-ended, month-to-month commitment

• Unlimited or Metered Cutting Usage

• CMC Model Z (SmartClamps™ Board + SwitchBlade™ Cartridge System)

• Choice of Stand: Floor or Wall Mount (Fixed or Retractable)

• Computer / Windows® OS

• FrameShop™ Design & Cut Software License

• 45º Standard Bevel Cutting (Metal) Cartridge + 1 Box (100) Premium Blades

• 45º+ Deep Bevel Cartridge

• 52º Intricate Bevel Cartridge

• 90º Straight Cartridge

• Pen Kit

• Debossing Kit (3 Tip Sizes)

• 1-Year Computer Warranty (Provided by PC Manufacturer)

• 1-Year CMC Warranty / Essential Premium Service Plan
  (Complete Hardware Coverage + Technical Support + Wizard University)

• Rental equipment is built Certified Factory Refurbished and may contain a combination of new and used parts.

Z Rental Options:

Unlimited Rental Program - Includes Unlimited Cutting

Metered Rental Program - Metered Usage: 1,000 Corners/Month

Additional Corners available for purchase. “Corners” are defined as a turn or rotation of the cutting head.

Wizard Z Technical Specifications:
- Maximum Material Size (HxW): 40” x 60”
- Maximum Cutting Speed: 20”/sec
- Machine Footprint (WxD): 74”x 46”
- Minimum Compressed Air Supply: 100 psi / 2 cfm
- Power Requirements: 110v

FrameShop™ Software Features:
- Nesting & Tiling Functionality (for maximizing material yield)
- Trace (vector-based drawing utility to create custom designs)
- Supported File Types: DXF, SVG, WZX, WCX, etc. + standard image formats (learn more here)
- TrueType Font Compatible
- Barcode Scanning Compatible
- Integration with Custom Framing Point of Sale (POS) Systems
- Over 115 Pre-Designed Templates Included
- Over 2,500 CutArt™ Files Included
- Compatible with NEW Digital Content available in the Webstore
- Internet Connectivity Required
